Project title

Updating the Detail Design for Al-Qaida Wastewater Network and Treatment Plant

Year start

May, 2019

Year end

July, 2019

Client

Urban Water Supply and Sanitation Projects, Ministry of Water and Environment

Consultant

The Professional – E for Engineering and Development - Yemen

Consultant Duties

• Site investigation and survey works including social and environmental impact assessment

• Creating hydraulic models using Water-Cad & Sewer-Cad software.
•Preparation of the detailed design for the wastewater treatment plant (WWTP) and sewer network - Developing of hybrid solar system for operating the WWTP

•Developing of hybrid solar system for operating the WWTP

•Preparation of the Detailed Drawings/specification and Tender Documents for the project.

Project features

Narrative Description of Project:

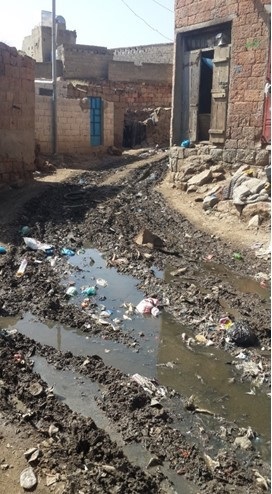

The project aims at providing the city of Al-Qaidah with a sanitation system contains of the following:

•Approximate 53,000 meters of wastewater gravity uPVC pipe lines, DN 200 to DN 500;

•Approximate 35,000 meters of waste water house connections of uPVC pipes, DN 150, including 5,072 inspection chambers;

•Approximate 2047 manholes;

•One sewage treatment plant of 13000 m3/day capacity, including inlet facility (screen unit, venture flume unit), Imhoff type primary clarifier, detention tank, trickling filter, secondary clarifier, sludge drying beds, excess sludge pumping system, effluent re- circulation pumping system, operation building, emergency power generator set, boundary walls, gate house, mixing and distribution chambers, effluent discharge pipe line DN 300, plant and street lighting system.
